Abrasive Blasting

Nozzle pressure has a direct impact on abrasive velocity, cleaning speed, surface profile, and overall blasting performance, which makes it one of the first things to check on any serious blasting project.

A compressor may show enough pressure, but losses through hoses, fittings, valves, moisture traps, and worn nozzles can mean the operator receives far less pressure where it actually matters.

Practical Tip

Measure pressure at the nozzle during blasting, then inspect hose sizing, couplings, moisture separators, and nozzle wear if the reading is lower than expected.

Clean, dry compressed air helps keep abrasive flowing consistently through the blast pot, hose, and nozzle, reducing clogging, uneven media flow, and moisture-related surface problems. Poor air quality can slow production, increase abrasive waste, and create the risk of flash rust or contamination on freshly blasted steel before coating begins.

Practical Tip

Use a high-capacity air dryer or moisture removal system before the blast pot, then regularly drain separators and check for oil, water, or dirt in the air supply.

The abrasive is the cutting tool of the blasting process, and its hardness, size, density, shape, and cleanliness influence how fast coatings are removed, what profile is created, and how much dust or waste remains.

Choosing abrasive only by purchase price can increase total project cost if it cuts slower, creates too much dust, breaks down quickly, or fails to produce the required coating profile.

Practical Tip

Match the abrasive to the coating thickness, required surface profile, substrate, and site conditions before ordering material, then perform a trial blast to confirm the result.

Use a high quality abrasive like GMA Garnet to benefit from compounding cost savings by using less abrasive per square meter resulting in reduced clean-up time and cost, if using an optimized blasting setup.

Abrasive blasting is most effective when the full surface preparation process is controlled, not just the visible removal of rust or paint. Dew point, humidity, soluble salts, dust, surface cleanliness, surface profile, and coating windows all influence whether the blasted steel is truly ready for a long-lasting protective coating.

Practical Tip

Create a pre-coating checklist that includes climate readings, salt testing, dust removal, profile measurement, and visual cleanliness inspection before the coating crew begins.

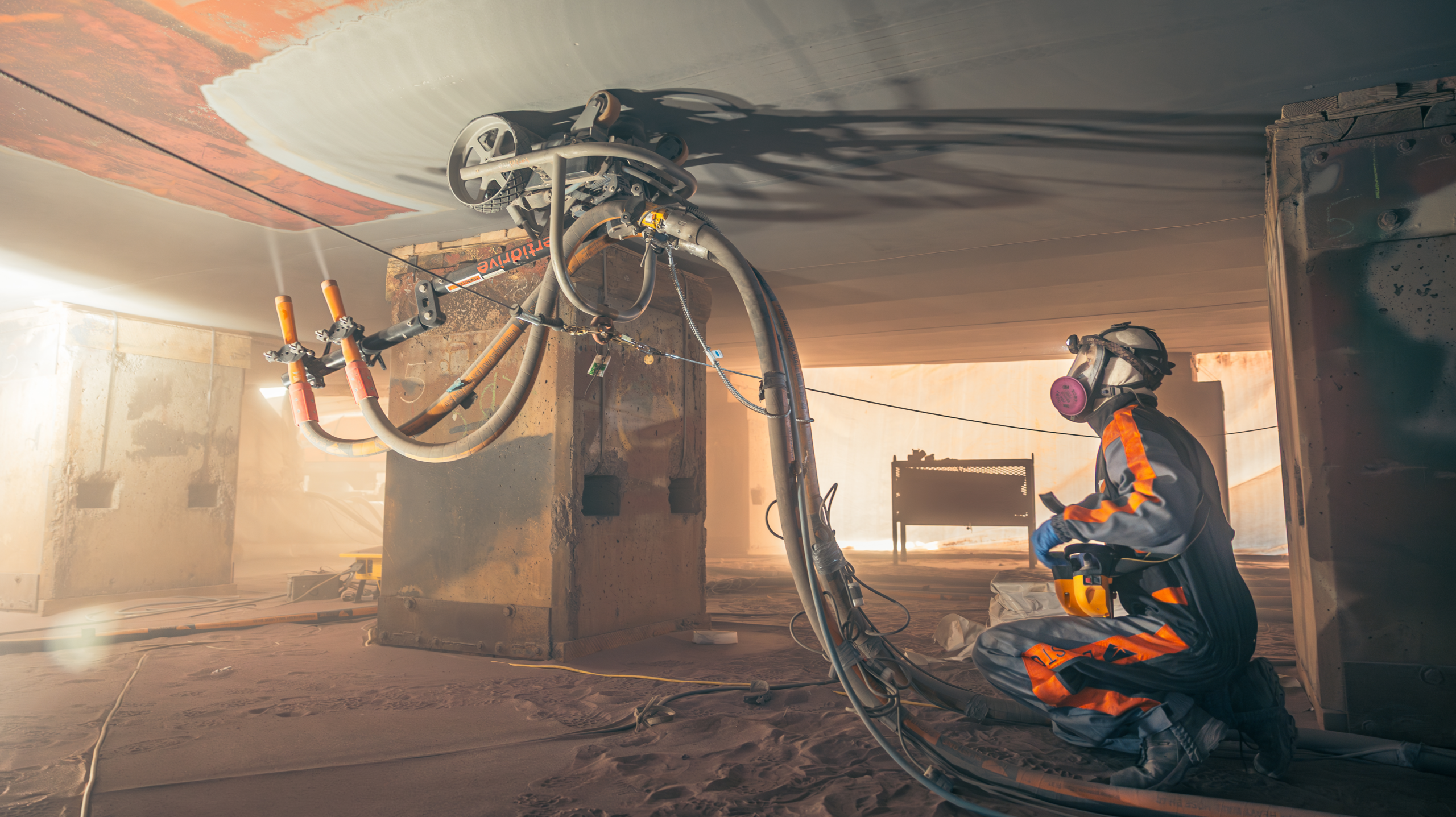

Automation improves large-area abrasive blasting by helping control movement, stand-off distance, travel speed, and coverage more consistently than manual blasting alone.

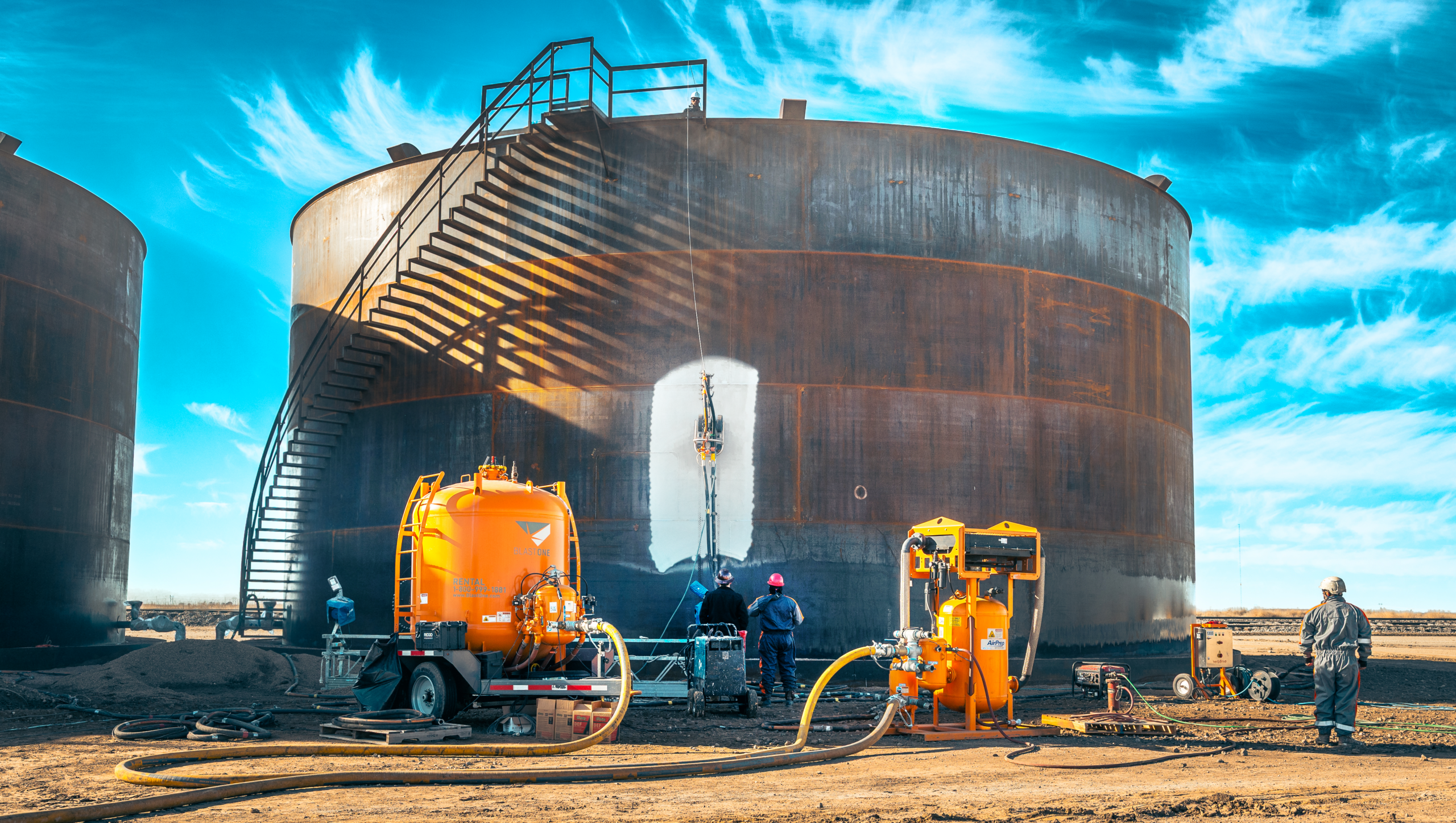

This is especially valuable on ship hulls, storage tanks, and other large steel assets where repetitive blasting can create fatigue, uneven productivity, and inconsistent surface preparation.

Practical Tip

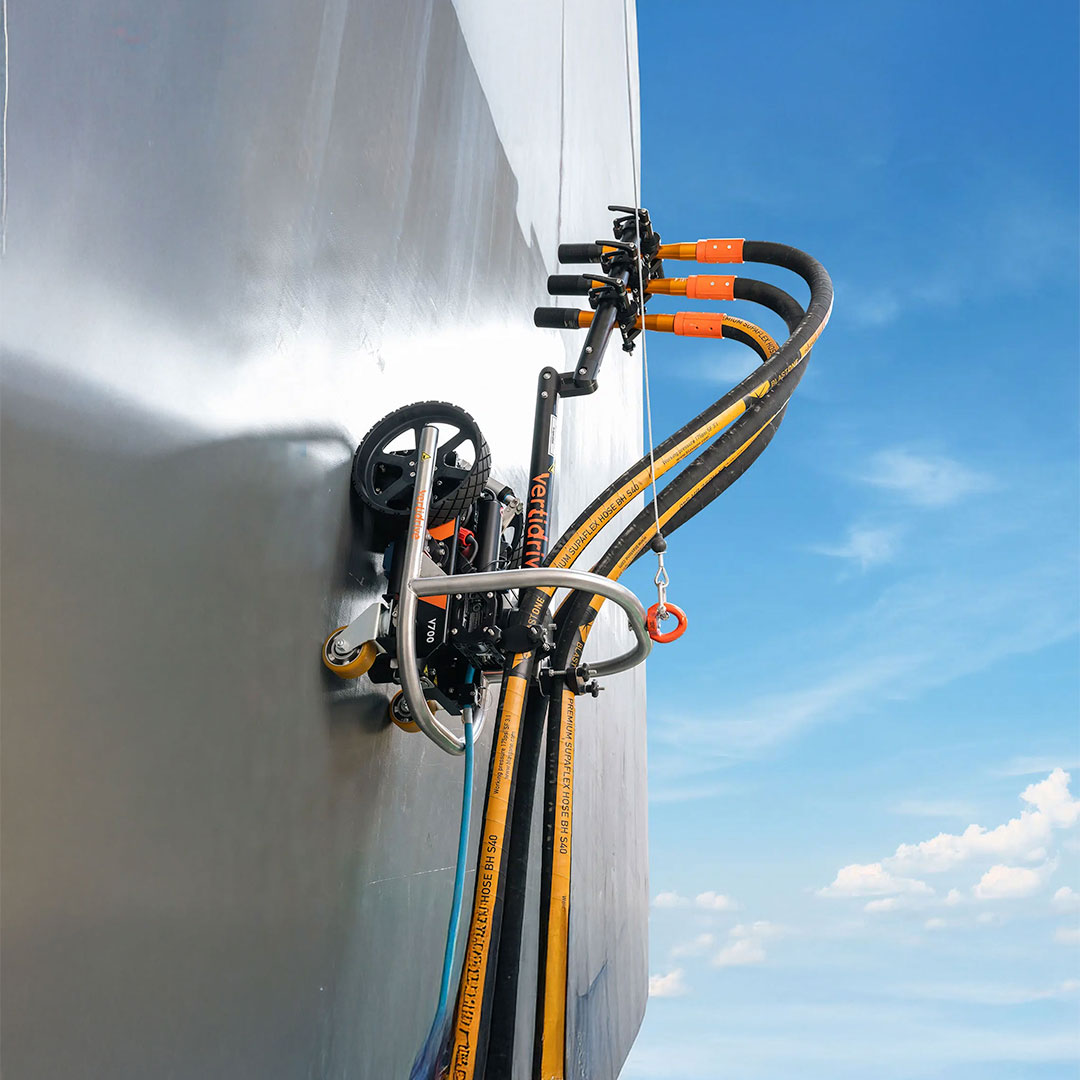

Use a VertiDrive robotic blasting system for large flat or curved steel areas, then assign skilled blasters to detail work such as welds, edges, brackets, corners, and difficult geometry.

The VertiDrive robotic platforms acts as a carrier and multiplying factor, most effective with a fully optimized blasting setup.
